14.3 Depth of Field

OpenGL's perspective projections simulate a pinhole camera; everything in the scene is in perfect focus. Real lenses have a finite area, which causes only objects within a limited range of distances to be in focus. Objects closer or farther from the camera are progressively more blurred.

The accumulation buffer can be used to create depth of field effects by jittering the eye point and the direction of view. These two parameters change in concert, so that one plane in the frustum doesn't change. This distance from the eye point is thus in focus, while distances nearer and farther become more and more blurred.


% latex2html id marker 16813
\fbox{\begin{tabular}{c}
\vrule width 0pt height 0....

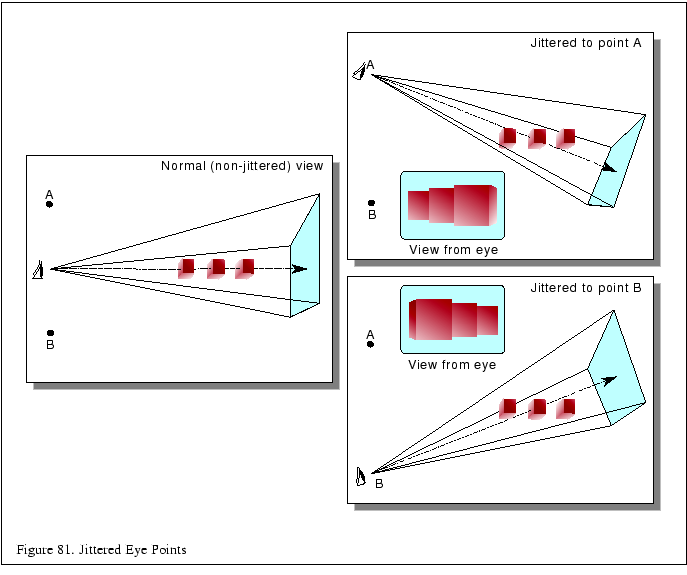

...n{1}{p{5.7in}}{\small Figure \thefigure . Jittered Eye Points}\\
\end{tabular}}

To create depth of field blurring, the perspective transform changes described for antialiasing in Section 9.5 are expanded somewhat. This code modifies the frustum as before, but adds in an additional offset. This offset is also used to change the modelview matrix; the two acting together change the eye point and the direction of view:

void frustum_depthoffield(GLdouble left, GLdouble right,
                        GLdouble bottom, GLdouble top,
                        GLdouble near, GLdouble far,
                        GLdouble xoff, GLdouble yoff,
                        GLdouble focus)
{
    glFrustum(left - xoff * near/focus,
                right - xoff * near/focus,
                top - yoff * near/focus,
                bottom - yoff * near/focus,
                near, far);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    glTranslatef(-xoff, -yoff);
}

The variables xoff and yoff now jitter the eye point, not the entire scene. The focus variable describes the distance from the eye where objects will be in perfect focus. Think of the eye point jittering as sampling the surface of a lens. The larger the lens, the greater the range of jitter values, and the more pronounced the blurring. The more samples taken, the more accurate a sampling of the lens. You can use the jitter values given in Section 9.5.

This function assumes that the current matrix is the projection matrix. It sets the frustum, then sets the modelview matrix to the identity, and loads it with a translation. The usual modelview transformations could then be applied to the modified modelview matrix stack. The translate would become the last logical transform to be applied.
